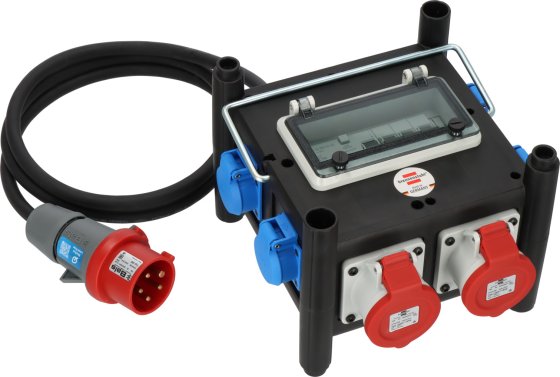

Compact Power Distributor BSV 3 FI/16 2 IP44 2m H07RN-F 5G2.5 - 2xCEE16A, 5x230V
Beskrivning
Beskrivning
- Stackable, splash-proof housing made from a special rubber compound for continuous load.
- Extremely robust, impact resistant, ageing and weather resistant.
- Resistant to a variety of oils, greases, gasoline and acids, UV and ozone radiation.
- Housing resistant to temperatures from -30 °C to +80 °C.
- Quality sockets in accordance with VDE 0620-1.
- Certified circuit breakers for your safety.

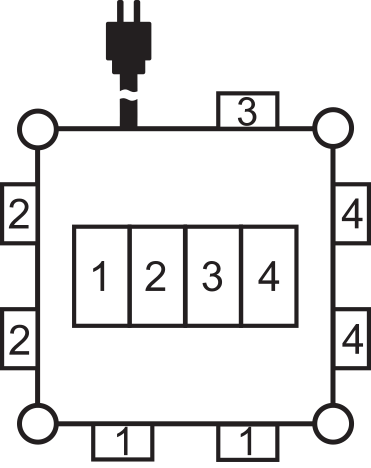

- Earthed sockets 230 V with 3 different phases.
- Sturdy metal carrying handle.
- Oil resistant rubber cable for permanent outside use.
- With RCD circuit breaker 30 mA for extra safety.
Protected against foreign bodies and splash water
Protection against contact with tools, wires or similar with ? >1.0 mm, protection against foreign bodies with ? > 1.0 mm. As well as protection against splash water from all directions

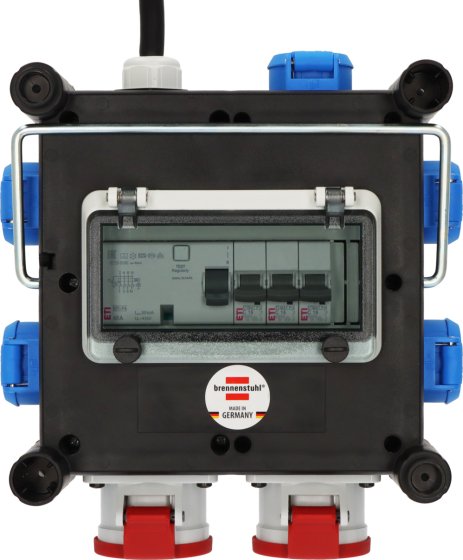

RCD personal protection switch
An RCD (residual current circuit breaker) is an electrical protective device that is primarily used to protect against electric shocks. The RCD recognises the difference between the incoming and outgoing current in a circuit and automatically switches off the circuit in the event of a residual current. When used for personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Tekniska data
Tekniska data
- Width of product (without packaging): 32 cm
- Weight of product (without packaging): 3,63 kg
- Height of product (without packaging): 23 cm
- Length of product (without packaging): 26,50 cm
- Max. electr. load capacity: 11000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 2
- Number of socket outlets total: 7
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Number of earthed socket outlets: 5
Nedladdningar
Nedladdningar
All products are subject to technical changes
