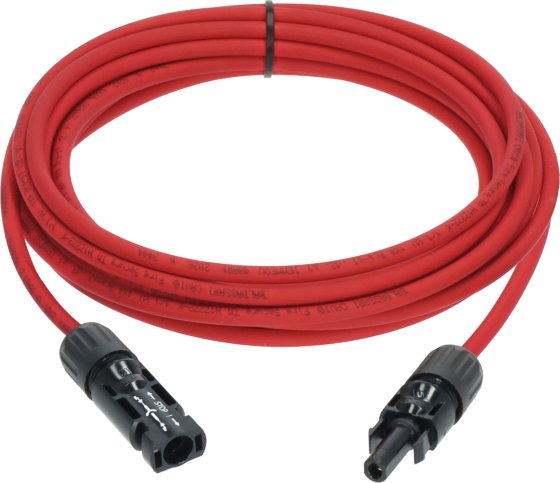

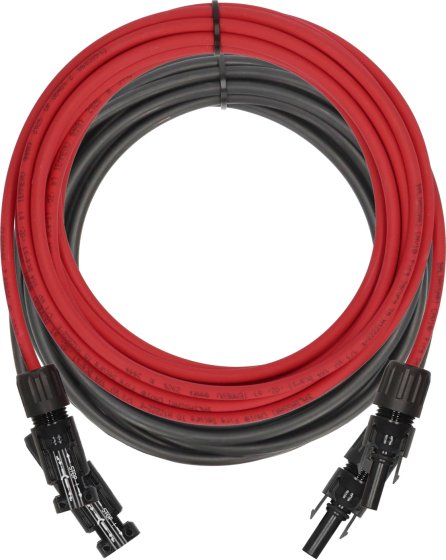

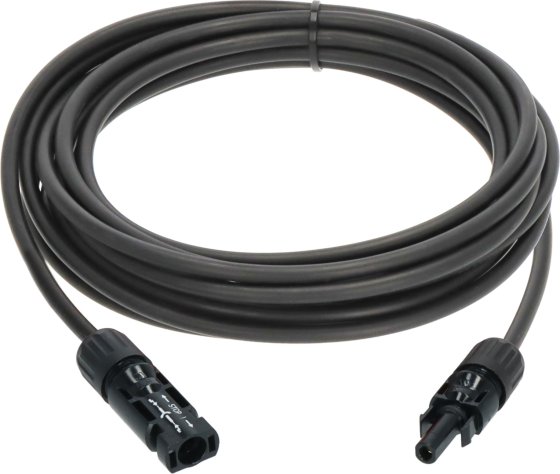

Solar extension cable 4mm² with MC4 plug 2x 5m (PV cable including solar plug, 2 solar cables 5m for PV solar system and power stations, Made in Germany)
Description

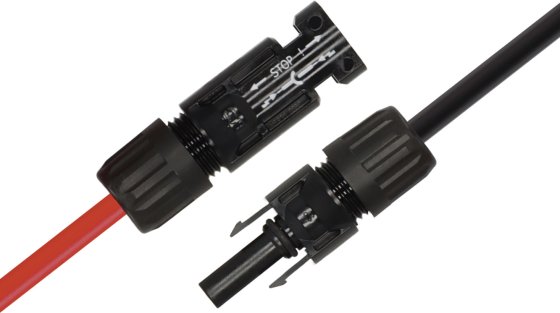

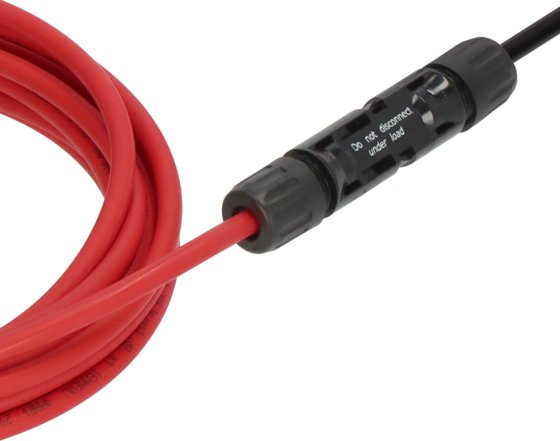

The two solar extension cables 4mm² with 5m cable length are ideally suited for the secure connection of solar modules, inverters and power stations and are optimal for balcony power plants, motorhome solar systems as well as carports suitable. The high-quality solar cables impress with their durable and robust workmanship and offer a service life of up to 25 years according to EN 50618 at temperatures up to 90 °C as well as 20,000 hours at a maximum of 120 °C. The installed original Stäubli MC4 connectors ensure a reliable and secure connection within the PV system and enable a quick as well as uncomplicated installation. Thanks to protection class IP68 the solar cables are dust- and waterproof and are therefore optimal for outdoor use. In addition the solar cables impress with the following features:
- UV- and water-resistant
- Voltage resistance: 1000 VDC
- Temperature range: -40°C to +85°C
- Maximum short-circuit temperature: 250°C / 5s
- Complete protection against contact and ingress of dust
- Also protected against water ingress during continuous submersion
Technical data
- Cable designation: h1z2z2_k_1_40
- Cable length: 5 m
- Degree of protection (IP): IP68
- Suitable for outdoor area: Yes
- Length of product (without packaging): 16,50 cm
- Width of product (without packaging): 16,50 cm
- Height of product (without packaging): 6 cm
- Weight of product (without packaging): 0,63 kg
Scope of supply

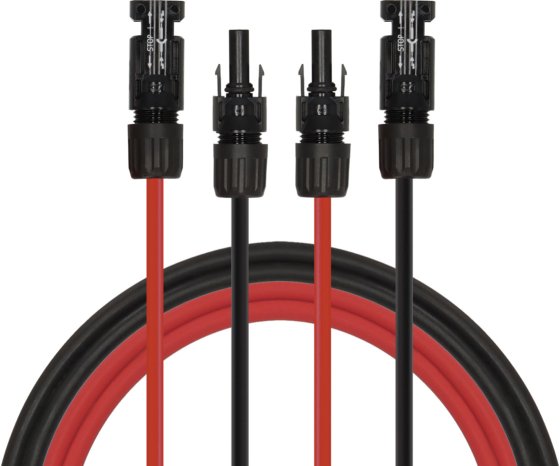

2x solar extension cable 4mm² 5m
