LED Spotlight JARO 3060 W / LED Floodlight 20W for outdoor use (LED Outdoor Light for wall mounting, with 2300lm, made of high-quality aluminium, IP65)
Description
Description
The JARO 3060 W LED Spotlight for wall mounting is an extremely energy-efficient LED floodlight with 20W power that meets the highest demands. Thanks to the IP65 protection rating (dustproof and jet-proof), it is not only suitable for indoor illumination, but also ideally suited for outdoor use. The LED Outdoor Floodlight also impresses with its extremely flat design and robustness. The installed Everlight SMD LEDs ensure an exceptionally long service life and their special light diffusion for large-area illumination. In addition, the LED Light convinces with the following features:
- Power: 20W
- Luminous flux: 2300lm
- Safety glass front panel
- Colour temperature: 6500K
- Impact resistance: IK08
IK08- Impact resistance grade
- The impact resistance rating indicates how well a housing or device is protected against mechanical shocks and impacts
- IK08 means that the device can withstand an impact energy of 5 joules, which corresponds to a blow with a 1.7 kg hammer from a distance of 30 cm
Dust-tight and protected against water jets
- Complete protection against contact and ingress of dust
- Also protected against water jets (nozzle) from any angle
Important installation steps
- Cable sheathing max. 20mm, strip wire insulation 12–14mm
- PE cable always longer than L and N, important for the tightness of the spotlight
- Cable length dimensioned so that the spotlight can be fixed in any position
- Do not feed the cable from above; allow for a slight bend to protect against rainwater

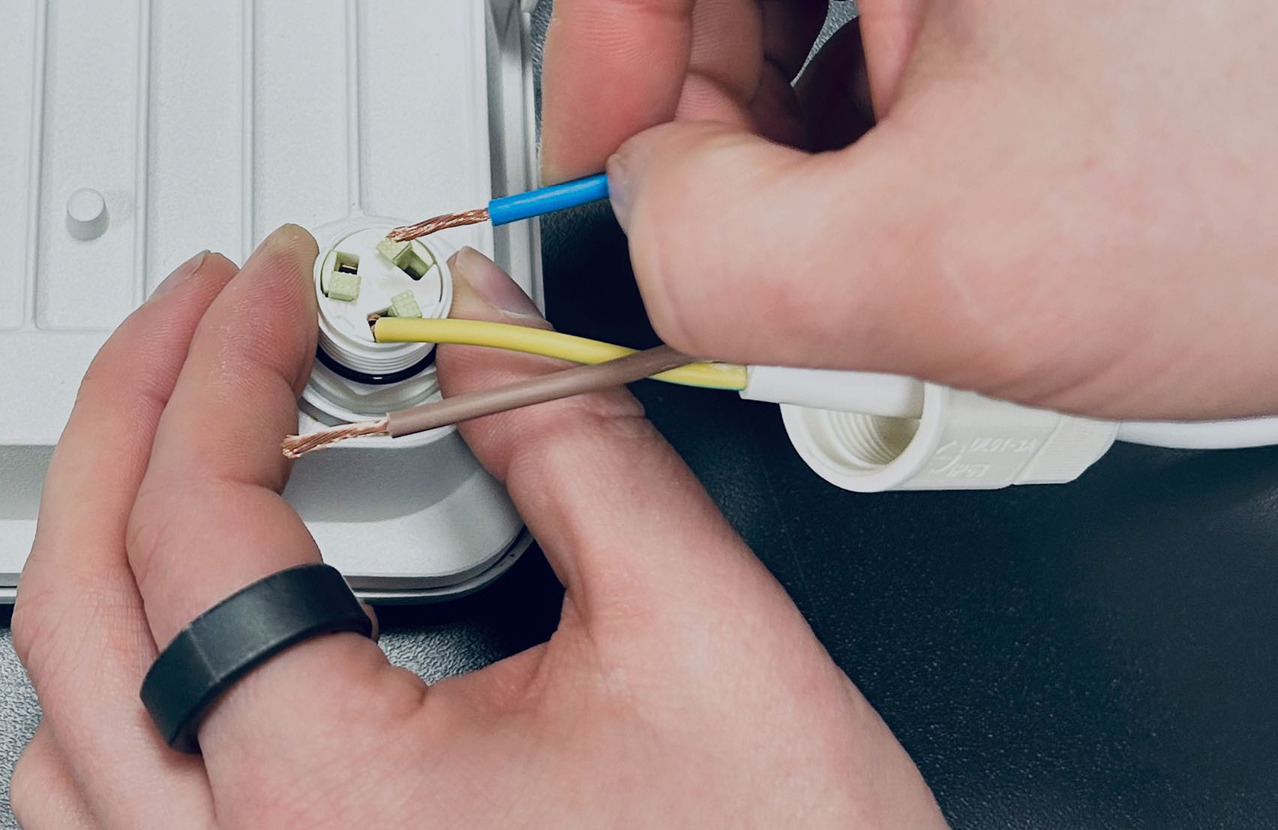

- Slide on the cable clamp, insert the strands into N, L and earth
- Spring mechanism locks automatically; can be released at the touch of a button
Technical data
Technical data
- Degree of protection (IP): IP65
- Type of lamp: Floodlight
- Luminous flux: 2.300 lm
- Protection class: I
- Impact strength: IK08
- Basic colour: white
- Housing material: Metal
- Colour rendering index: 80
- Energy efficiency class: D
- Lifetime (L70B50): 30000 h
- Beam angle: 110 °
- Standby power: 0 W
- Min. Nominal input voltage: 220 V
- Max. Nominal input voltage: 240 V
- Type of input voltage: Alternating voltage (AC)
- Nominal frequency: 50/60 Hz
Scope of supply
Scope of supply
LED Light JARO 3060 W
Downloads
Downloads
Similar products
All products are subject to technical changes
