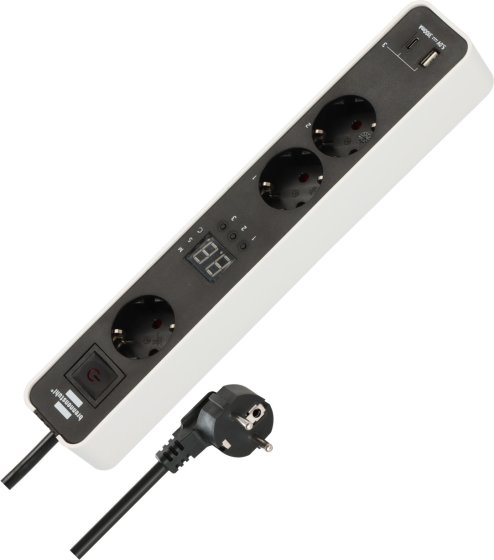

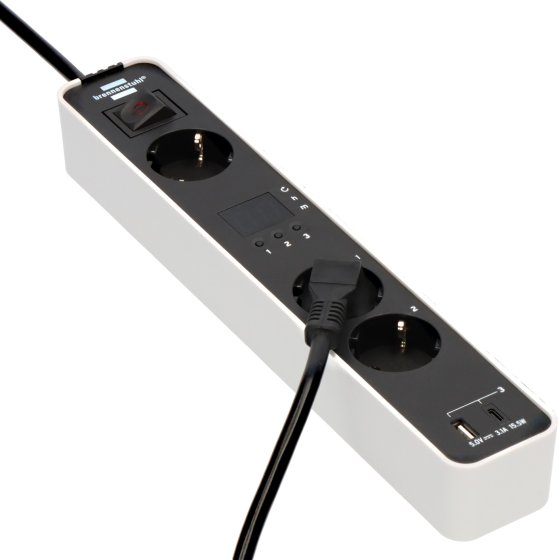

Ecolor Extension Lead 3-way with countdown timer and two USB charging sockets USB A and C (Power Strip with 2x switchable and 1x permanent socket, 3 independent timers, switch and 1.5m cable)

Name: Ecolor Extension Lead 3-way with countdown timer, 1x USB A, 1x USB C, white/black, 1,5m H05VV-F 3G1,5
Brand: Brennenstuhl
SKU: 1153230026

new

Article number 1153230026

EAN 4007123686674

Extension Lead with one permanent earthed socket, two switchable earthed sockets (max. 230V/16A, 3680W) with increased touch protection and 1x USB A and 1x USB C charging connection (max. 5V/3.10A, 15.5W)
With 3 independent timers for the two safety sockets and one for the USB ports, each with 11 selectable timer options: 15min, 30min, 45min, 1h, 2h, 4h, 6h, 8h, 10h, 12h or 24h

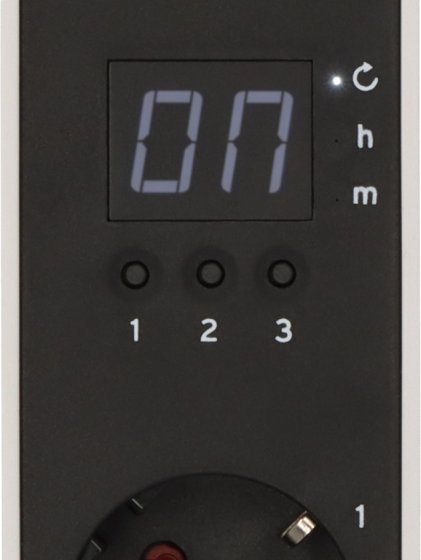

In addition, the Power Strip offers an automatically repeatable timer function after 12 or 24 hours and a display of the remaining time
The respective initial state after the power returns to the two switchable sockets or the USB ports can be determined by the user (on, off or the last set time/state is executed again)
Plug Socket with illuminated safety switch for switching on and off (two-pole) and a 1.5m cable (H05VV-F 3G1.5)

Article number 1153230026

EAN 4007123686674

Description

The Ecolor 3-way Extension Lead with countdown timer and USB A and C offers a permanent protective contact socket, two switchable protective contact sockets (max. 230V/16A, 3680W) with increased touch protection and a USB A and USB C charging connection (max. 5V/3.10A, 15.5W). The two programmable sockets and the USB ports can be permanently activated or deactivated by setting them accordingly. In addition, the three independent timers offer flexible options, including 11 selectable timer intervals from 15 minutes to 24 hours. In addition, the Power Strip enables an automatically repeatable timer function after 12 or 24 hours, displays the remaining time and allows the initial state for the switchable sockets and USB ports to be set individually after the power returns (on, off or restoration of the last set state). The Plug Socket also impresses with the following features:

Cable length: 1.5m
Cable designation: H05VV-F 3G1.5
Illuminated safety switch, can be switched on/off with two poles
Timer options: 15min, 30min, 45min, 1h, 2h, 4h, 6h, 8h, 10h, 12h, 24h

USB C Charger

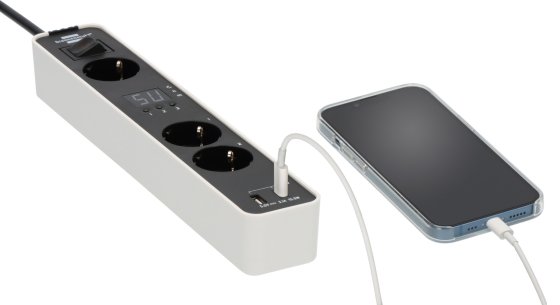

Practical charging without a power adapter via USB C Charger possible

USB Charger

Practical charging without mains adapter via USB charger possible

Technical data

Colour: white, black
With surge protection: No
Number of socket outlets total: 3
Usage: Household
Socket outlet arrangement: 45°
Cable length: 1,50 m
USB function: USB charger
Max. output current USB: 2,10 A
Suitable for built-in mounting: No
Suitable for 19 inch rack mounting: No
With hand/ foot switch: No
With wireless control: No
Type of fastening: Not applicable
Suitable for outdoor area: No
Main Follow function: No
Type of plug: Angle plug
With residual current circuit breaker (RCCB): No
Degree of protection (IP): IP20
USB type output socket: Type A, Type C
Nominal input voltage: 230 V
With interference suppressor filter: No
Protection: Not applicable
Max. electr. load capacity: 3680 W
Cable designation: H05VV-F 3G1,5
Cable length: 1,50 m
Cable quality: PVC
Length of product (without packaging): 5,10 cm
Width of product (without packaging): 7,40 cm
Height of product (without packaging): 38 cm
Weight of product (without packaging): 0,61 kg

Downloads

Instruction Manual (7.03 MB)

All products are subject to technical changes
