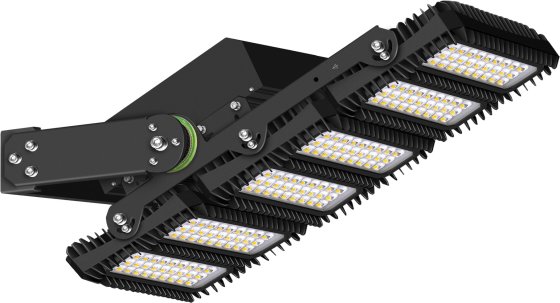

LED power spotlight "AREA Expert M18" (LED technology, die-cast aluminum housing, 680W, 91638lm, 5700K, IP66, IK10)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft LED floodlights
- Product image
Article number 1171810650
EAN 4007123312818
  • The black housing is made of die-cast aluminum with a powder coating
  • The strong lockable bracket enables secure and firm mounting
  • Equipped with state-of-the-art LED technology and individually adjustable LED panels
  • Very good illumination thanks to optimized light beam angle (asymmetrical beam angle 130°x60°)
  • Scope of delivery: 1x LED power spotlight made of die-cast aluminum in the color black - in best quality from brennenstuhl®
Article number 1171810650
EAN 4007123312818
Description

Description

The "AREA Expert M18" LED power spotlight is an extremely robust LED spotlight with 680 W output that meets the highest demands.
Thanks to its solid die-cast aluminum housing with powder coating, it is perfect for use on cranes. The optimized light beam angle in particular provides powerful illumination for large outdoor areas. The spotlights are easy to install thanks to the very robust lockable bracket.
The spotlight also impresses with the following features:

  • Protection class: IP66
  • Power: 680W
  • Luminous flux: 91638lm
  • With connection cable
  • Front panel: PC
  • Beam angle: asymmetrical 130 x 60°
  • Color rendering: CRI >80
  • Shock resistance (ball impact resistance): IK10
  • Dimensions without bracket H x W x D: 310 x 750 x 240 mm
  • Life expectancy: over 50'000h
  • Color temperature: 5700K
IK10- Impact resistance grade
IK10- Impact resistance grade
  • The impact resistance level indicates how well a housing or device is protected against mechanical shocks and impacts
  • IK10 means that the device can withstand an impact energy of 20 joules, which corresponds to an impact of a 5 kg mass from a height of 40 cm
Technical data

Technical data

  • Degree of protection (IP): IP66
  • Type of lamp: other
  • Impact strength: IK10
  • Colour temperature: 5700 K
  • Basic colour: black
  • Housing material: Plastic/ metal
  • Energy efficiency class: D
  • Nominal input voltage: 230 V
  • Nominal frequency: 50/60 Hz
  • Cable designation: H07RN-F 3G1,5
  • Cable length: 1,40 m
  • Cable quality: Rubber-Neoprene
  • Width of product (without packaging): 39 cm
  • Weight of product (without packaging): 24,10 kg
  • Height of product (without packaging): 24 cm
  • Length of product (without packaging): 89 cm
Downloads

Downloads

All products are subject to technical changes
