Kompakt ST 180 cable drum, 4x protective contact sockets 230V/16A, 15m H05VV-F 3G1,5 black

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels

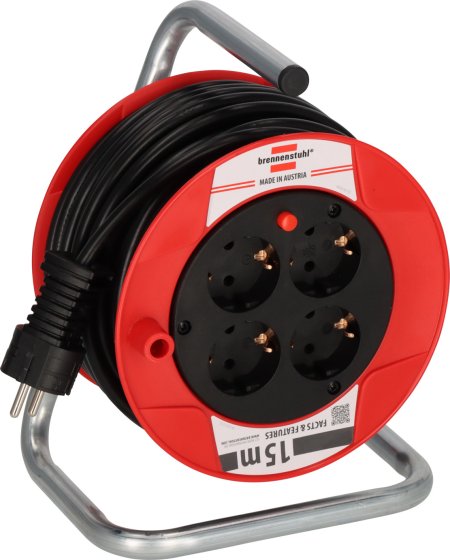

- Product image
Article number 1079188
EAN 4007123082414
Article number 1079188
EAN 4007123082414
Description

Description

  • Reel body made of special plastic on galvanised support frame.
  • Sockets with increased contact protection.
  • With overheating protection.
  • Protective contact plug 230V/16A.
  • 4 protective contact sockets 230V/16A.
Technical data

Technical data

  • Capacity in coiled state 230V: 1000 W
  • Capacity in uncoiled state 230V: 3500 W
  • Usage: Household
  • Housing material: Plastic
  • Area of use: Indoor
  • Number of earthed socket outlets: 4
  • With CABLEPILOT: No
  • With plug storage: No
  • With Bretec: No
  • Cable quality: PVC
  • Cable length: 15 m
  • Cable designation: H05VV-F 3G1,5
  • With residual current circuit breaker (RCCB): No
  • Reel diameter: 180 mm
  • With carrying handle: Yes
  • Degree of protection (IP): IP20
  • Width of product (without packaging): 19,50 cm
  • Weight of product (without packaging): 2,10 kg
  • Height of product (without packaging): 25 cm
  • Length of product (without packaging): 16,50 cm
Downloads

Downloads

All products are subject to technical changes
