Portable Power Distributor BSV P (2m cable, 6x 230V/16A sockets, CEE 400V/16A plug, construction site use and permanent outdoor use, Made in Germany)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Power distributors
- Product image
- Additional product image
- Additional product image
- Additional product image

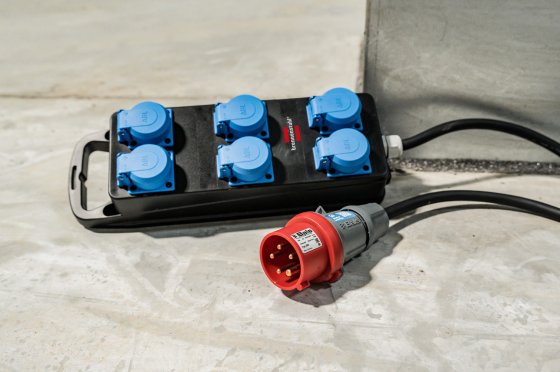

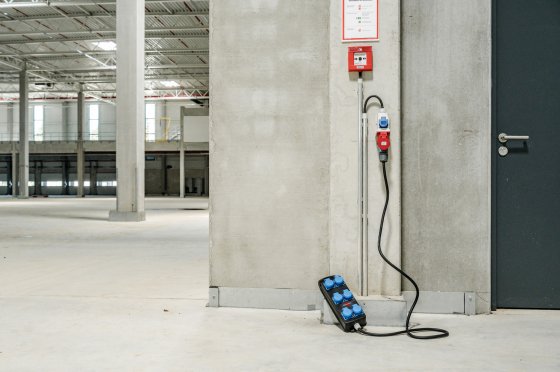

- Application image
- Application image
- Product image
- Additional product image
- Additional product image
- Additional product image
- Application image
- Application image
Article number 1151480010
EAN 4007123688722
  • Power Distributor with 6 230V/16A earthed sockets with hinged covers and 2m oil-resistant rubber cable H07RN-F 5G2.5 for permanent outdoor use - 6 devices can be connected to just one power source
  • The 230V earthed sockets are distributed in pairs across all three phases - ideal for applications with many devices such as on construction sites, city festivals or events, as this ensures even load distribution and safe operation
  • With symmetrical distribution, each phase supplies up to 16A, so that up to 11kW can be used without overloading individual phases - this minimises the risk of overheating or blowing fuses and ensures stable power distribution
  • Rubber multi-way Distributor with splash-proof housing made of a special rubber compound and quality sockets to VDE 0620-1 is resistant to various oils, greases, petrol and acids, UV and ozone radiation
  • Robust Power Distributor - impact-resistant and resistant to ageing and weathering, with a housing for applications from -30°C to +80°C - the power distributor can be mounted flexibly thanks to the fastening strap and four screw holes
Article number 1151480010
EAN 4007123688722
Description

Description

The Portable Power Distributor BSV P with 6 230V/16A earthed sockets is the ideal solution for outdoor use - be it on construction sites, city festivals or events. The sockets are distributed in pairs over three phases and, with symmetrical distribution, each phase supplies up to 16A, so that up to 11kW can be utilised without overloading individual phases. With its splash-proof housing made of a special rubber compound and quality sockets in accordance with VDE 0620-1, the robust multiple distributor is resistant to various oils, greases, petrol and acids, UV and ozone radiation. The robust housing is suitable for applications from -30°C to +80°C and can be flexibly mounted thanks to the fastening strap and four screw holes - for a reliable power supply wherever it is needed. It also impresses with the following features:

  • Cable length: 2m
  • Cable designation: H07RN-F 5G2.5
  • Protection class: IP44
  • Plug: CEE 400V/16A 5-pin/-pin
  • 6x earthed sockets (230V/16A, connected to three phases)
  • Max. electrical load capacity: 11,000W
Protected against foreign bodies and splash water
Protected against foreign bodies and splash water
  • Protection against splash water from all directions
Technical data

Technical data

  • Cable designation: H07RN-F 5G2,5
  • Cable length: 2 m
  • Cable quality: Rubber-Neoprene
  • Max. electr. load capacity: 11000 W
  • Nominal input voltage: 400 V
  • With carrying handle: Yes
  • Housing material: Plastic/ rubber
  • Residual current circuit breaker (RCCB): Without
  • Number of socket outlets total: 6
  • Number of earthed socket outlets: 6
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
  • Length of product (without packaging): 9,70 cm
  • Width of product (without packaging): 21 cm
  • Height of product (without packaging): 43 cm
  • Weight of product (without packaging): 1,68 kg
Downloads

Downloads

All products are subject to technical changes
