Power distribution 16A / power station for construction site use and permanent outdoor use IP44 (power distributor 2m H07RN-F 5G2.5 cable, suitable for wall mounting, Made in Germany)
new
Description
Description

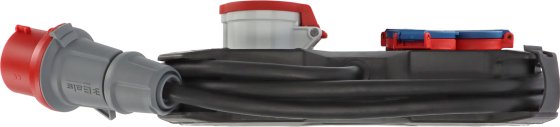

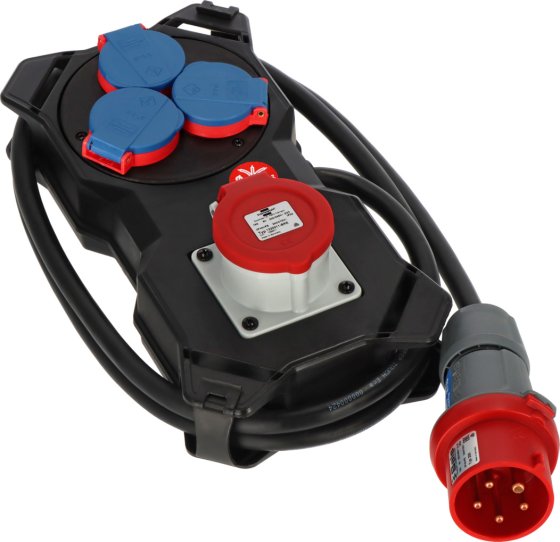

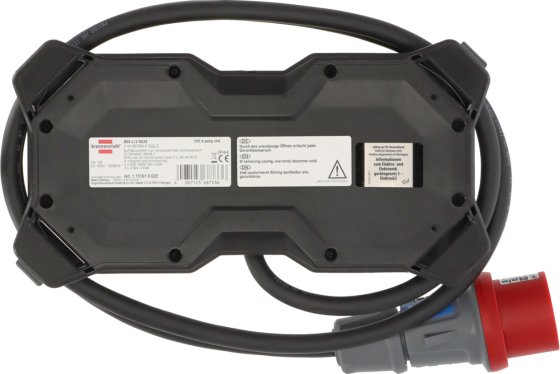

The robust power station with 2m rubber-neoprene cable is ideally suited for industrial and craft applications. Due to its IP44 protection class and cable quality, the power distributor can be used permanently in outdoor areas (protected against foreign bodies and splash water) and can also be easily hung on a wall if required. The power distributor with its housing made of highly break-proof plastic also has a practical take-up device for storing the cable. Furthermore, the power station 16A convinces with the following features:

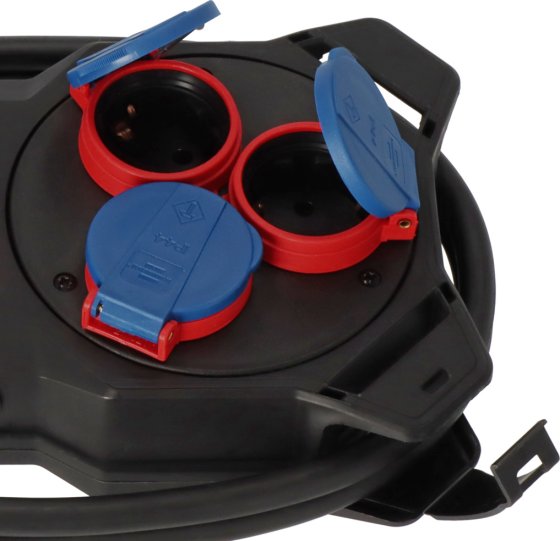

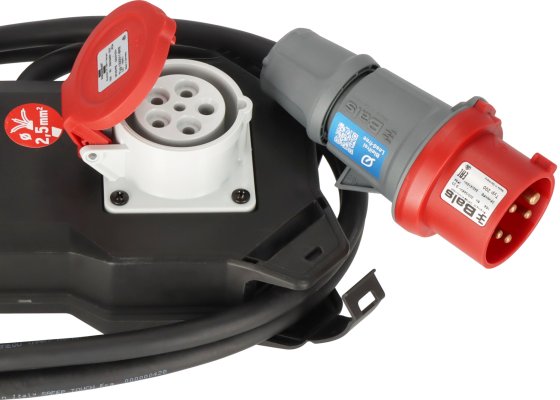

- Sockets: 1x CEE 400V/16A, 3x 230V protective contact sockets (the three protective contact sockets are connected to three phases)
- Cable length: 2m
- Cable quality: rubber-neoprene
- Cable designation: H07RN-F 5G2,5
- Maximum current carrying capacity: 16A
Technical data
Technical data
- Width of product (without packaging): 34 cm
- Weight of product (without packaging): 1,61 kg
- Height of product (without packaging): 10,50 cm
- Length of product (without packaging): 24,50 cm
- Max. electr. load capacity: 11000 W
- Nominal input voltage: 400 V
- With carrying handle: No
- Housing material: Plastic
- Number of CEE socket outlets total: 1
- Number of socket outlets total: 4
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Residual current circuit breaker (RCCB): Without
- Number of earthed socket outlets: 3
Downloads
Downloads
All products are subject to technical changes
