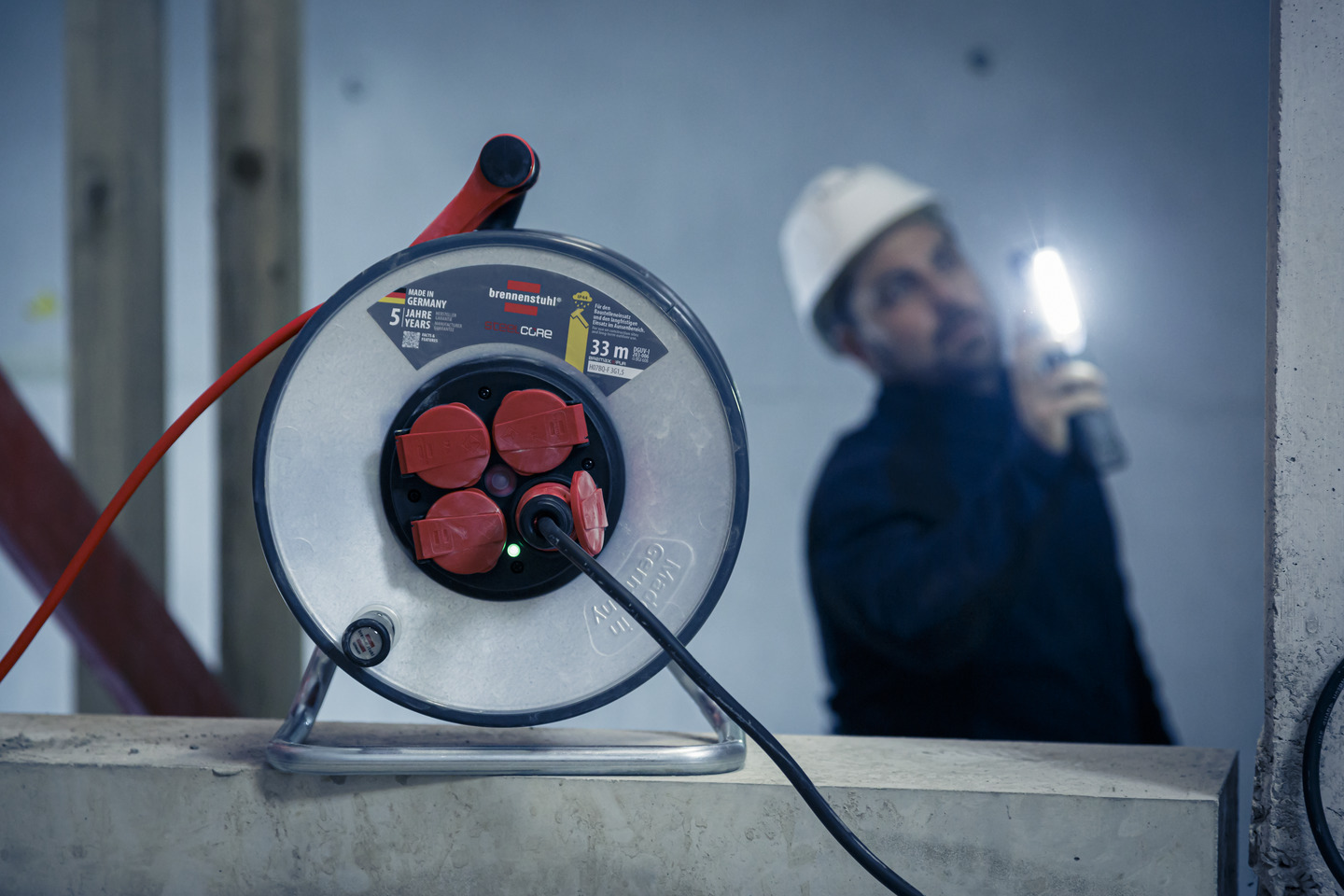

Professional SteelCore Cable Reel SC 3110 IP44 (33m H07BQ-F 3G1.5 cable, cold-resistant cable down to -40 °C, construction site use and permanent outdoor use, 4 protective contact sockets, Made in Germany)
Description
The Professional 33m Cable Reel with a reel body made of sheet steel, which is cold impact resistant down to -25 °C, is perfect for continuous professional use in outdoor areas. The extremely resilient and abrasion-resistant BQ cable is acid and oil-resistant, weather and microbe-resistant and also cold-resistant down to -40 °C. The cable reel with 4 splash-proof protective contact sockets has overheating protection with indicator light for overheating and overloading and a visual readiness indicator in the socket insert. The innovative "cablepilot" carrying handle ensures perfect cable routing, allowing it to be swivelled on both sides and also conveniently carried and hung up. The professional Cable Reel also impresses with the following features:
- Drum body made of sheet steel, front and rear insulated for robust operation
- BREMAXX®-PUR cable (BQ cable): acid and oil-resistant, weather and microbe-resistant, cold-resistant down to -40 °C
- Large, sturdy folding twist handle for effortless winding and unwinding of the cable
- Protection class: IP44
- Cable length: 33m
- Cable designation: H07BQ-F 3G1.5
- Cable colour: red
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Technical data
- Cable designation: H07BQ-F 3G1,5
- Cable length: 33 m
- Cable quality: PUR (polyurethane), PUR (polyurethane)
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- With Bretec: No
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Sheet steel insulated
- With plug storage: Yes
- Number of CEE socket outlets:
- Number of earthed socket outlets: 4
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 39 cm
- Length: 21 cm
- Weight: 5,74 kg
- Width: 30,50 cm
- Additional cable length: 0 m
Scope of supply
Professional SteelCore cable reel SC 3110
Downloads
All products are subject to technical changes
