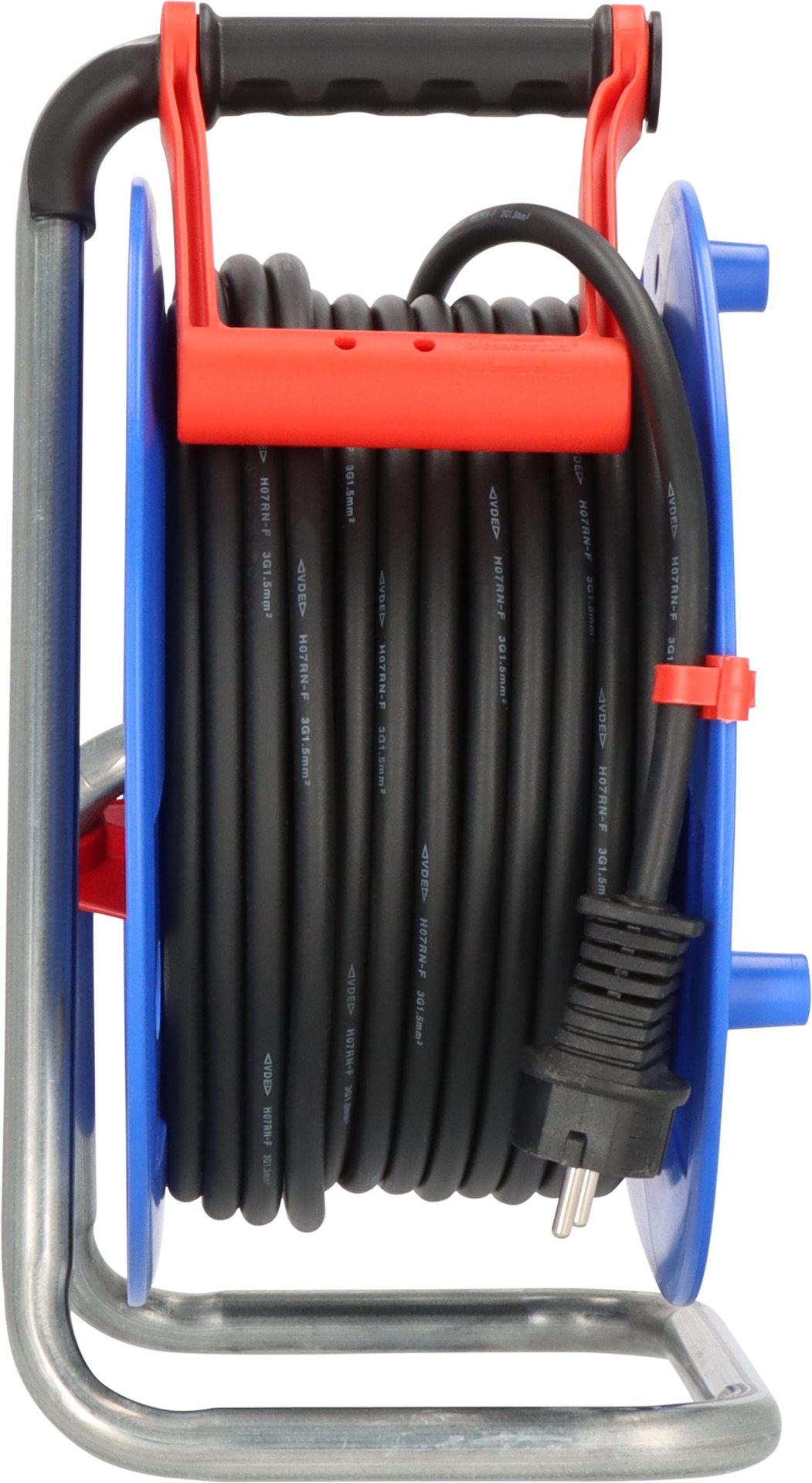

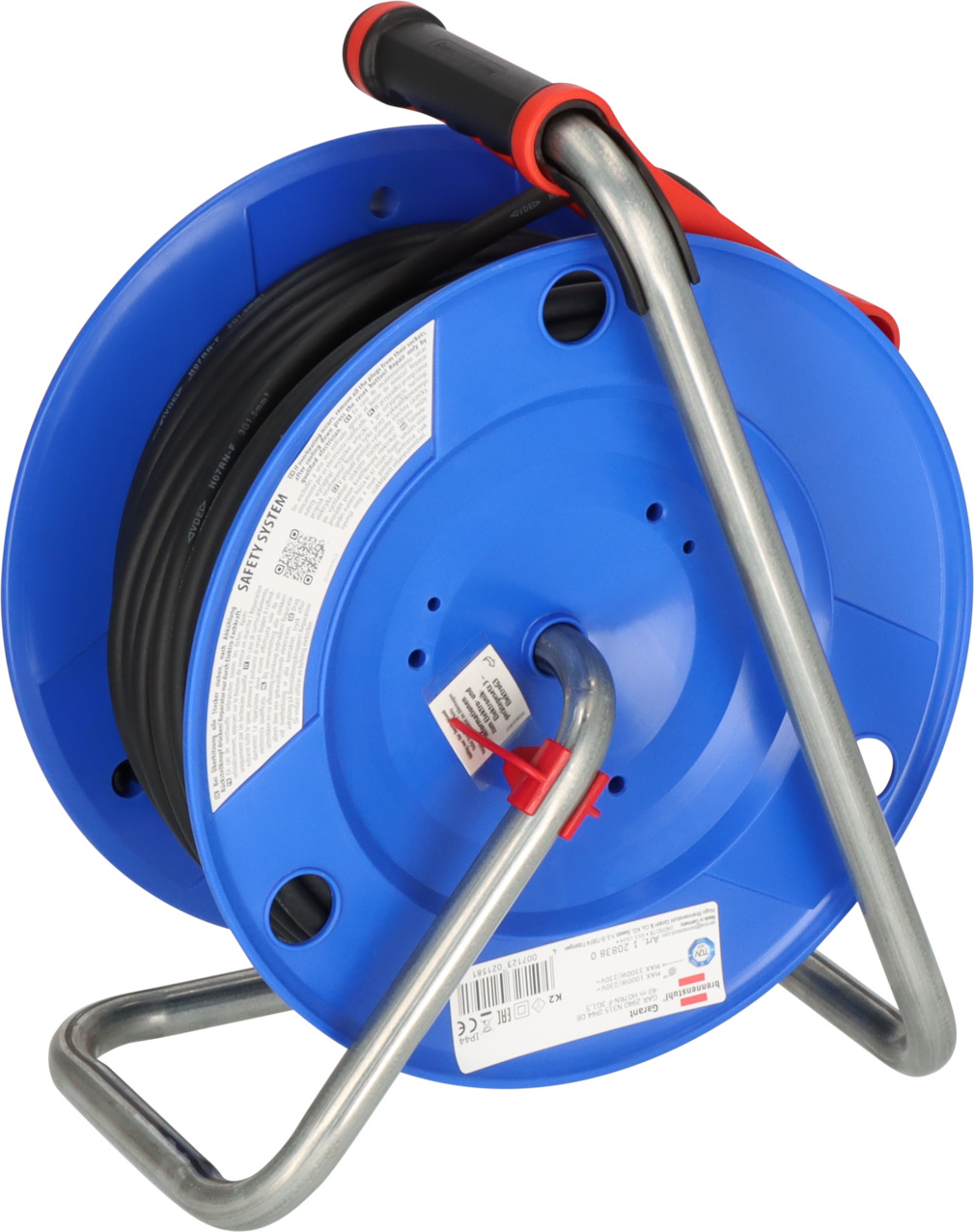

Garant IP44 commercial/construction site cable reel, 40m - special plastic (construction site use and permanent outdoor use, Made in Germany)

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Application image
- Application image
- Product image
- Additional product image
- Additional product image
- Additional product image
- Additional product image
- Application image
- Application image
Article number 1208380
EAN 4007123021581

  • 40m cable length (H07RN-F 3G1.5) RN cable - very robust, oil-resistant and particularly suitable for professional use
  • Outdoor cable reel with overheating protection, indicator light for overheating and overloading
  • Cable Reel for construction site use in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
  • Reel body made of special plastic on galvanised support frame with 3 earthed sockets, splash-proof, with self-closing lids
  • Innovative carrying handle "cablepilot" ensures perfect cable routing and prevents the cable from slipping off during winding and unwinding - free hands during transport and practical hanging up
Article number 1208380
EAN 4007123021581

Description

Description

The Garant IP44 commercial/construction site Cable Reel with 40m cable length in the colour blue is ideal for use on construction sites and outdoors. The Cable Reel is equipped with the innovative ‘’cablepilot‘’ carrying handle, which allows free hands during transport, practical hanging and quick unwinding and rewinding. It also impresses with the following features:

  • RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
  • Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
  • With twist handle for convenient retraction
  • IP44 protection rating
  • Cable length 40m
  • Cable designation H07RN-F 3G1.5
  • Cable quality rubber-neoprene
  • Cable colour black
  • Drum diameter 290 mm
For use on construction sites
For use on construction sites
  • For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
  • Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Protected against foreign bodies and splash water
Protected against foreign bodies and splash water
  • Protection against splash water from all directions
Technical data

Technical data

  • Capacity in coiled state 230V: 1000 W
  • Capacity in uncoiled state 230V: 3300 W
  • Usage: Trade/ construction sites
  • Housing material: Plastic
  • Area of use: Outdoor
  • Number of earthed socket outlets: 3
  • Number of CEE socket outlets:
  • With CABLEPILOT: Yes
  • With plug storage: Yes
  • With Bretec: No
  • Cable quality: Rubber-Neoprene
  • Cable length: 40 m
  • Cable designation: H07RN-F 3G1,5
  • With residual current circuit breaker (RCCB): No
  • Reel diameter: 290 mm
  • With carrying handle: Yes
  • Degree of protection (IP): IP44
  • Nominal input voltage: 230 V
  • Width of product (without packaging): 29 cm
  • Weight of product (without packaging): 7,66 kg
  • Height of product (without packaging): 37 cm
  • Length of product (without packaging): 19 cm
Downloads

Downloads

Accessories

Accessories

1081000
Drum step for cable reel Ø 240/290mm (Ø 18mm pipe)

All products are subject to technical changes
