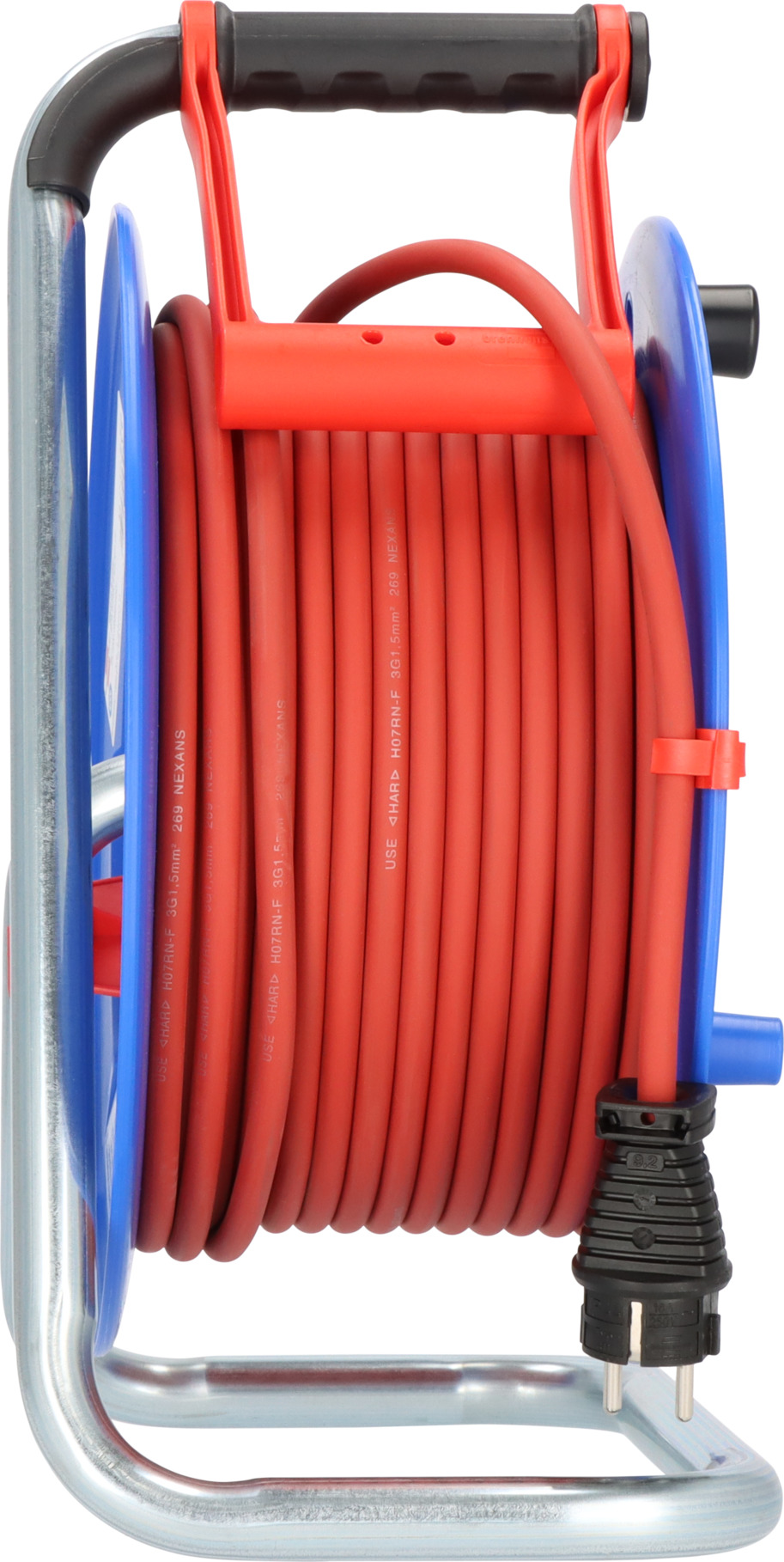

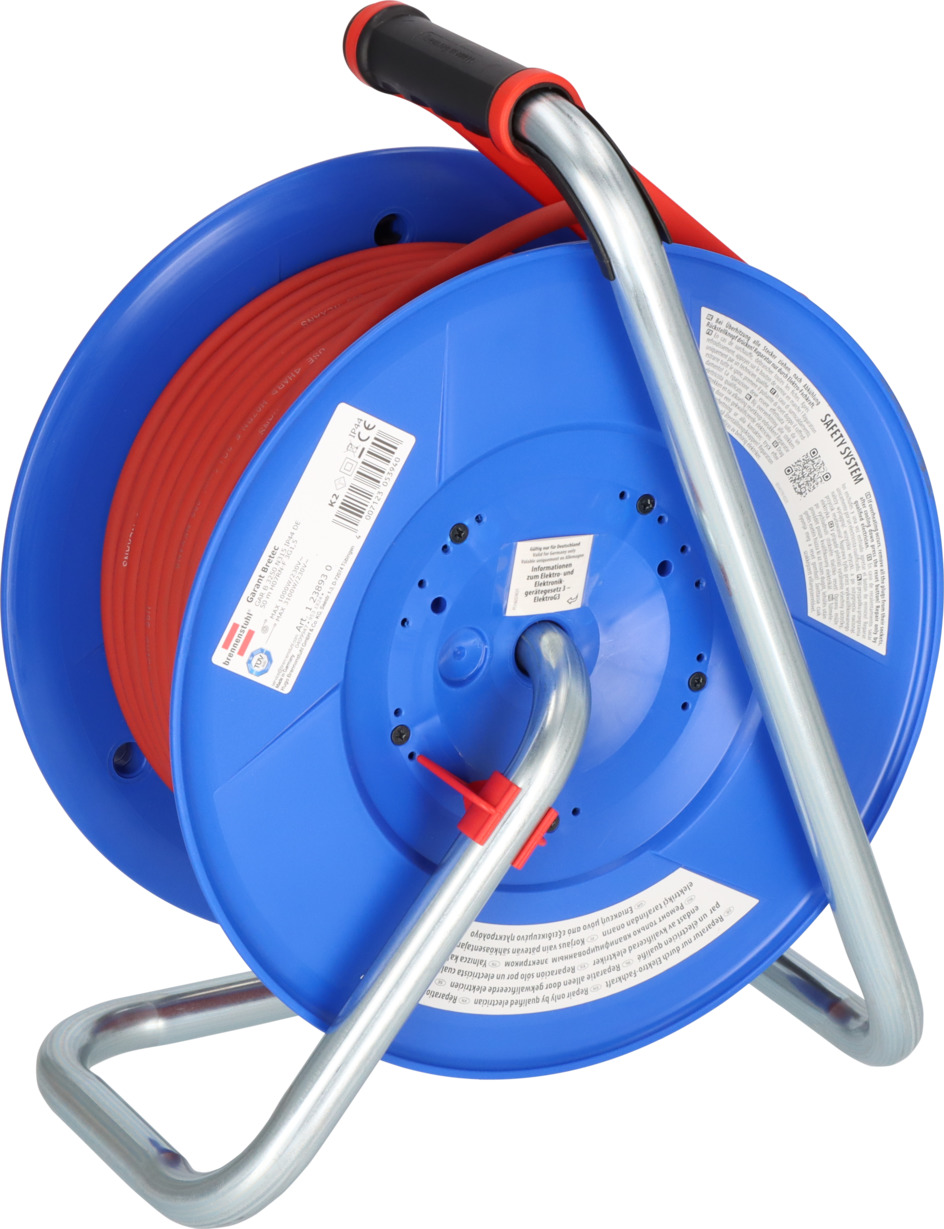

Garant Bretec IP44 cable reel for site & professional 50m H07RN-F 3G1,5
Description
Description

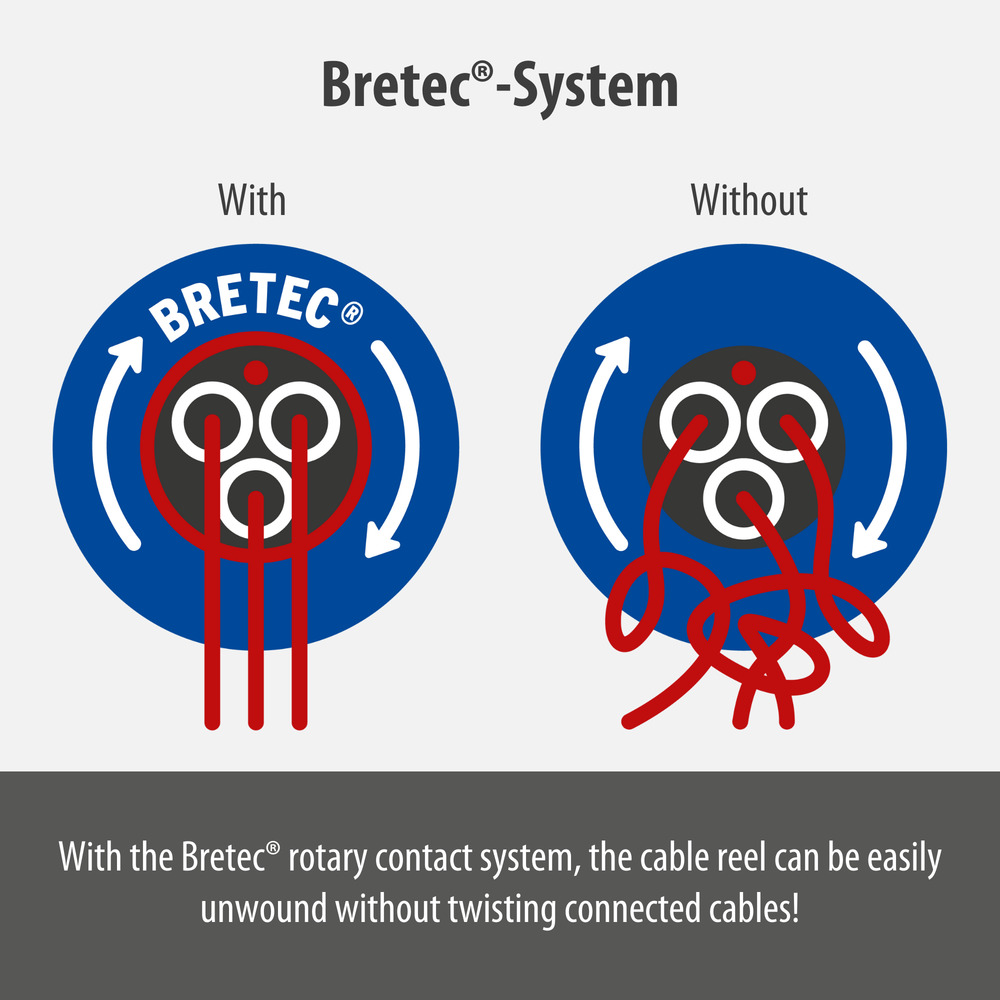

- The Bretec® rotary contact system allows the cable reel to be rolled up or unrolled without connected cables twisting.
- Drum body made of special plastic on galvanised carrying frame.
- Innovative carrying handle "cablepilot" for perfect cable guidance. Swings on both sides for convenient carrying and hanging.
- With twist handle for comfortable rolling up.
- RN cable is approved for difficult building conditions according to VDE 0100 part 704.
- 3 protective contact sockets, splash-proof, with self-closing covers.
- Overheating protection, indicator light in case of overheating and overload.
- Category 2 equipment (K2 DGUV 203-005): Used for harsh operating conditions with high mechanical, physical and chemical impacts.
For use on construction sites
- For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Bretec® rotary contact comfort
- Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert
- This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted
Protected against foreign bodies and splash water
- Protection against splash water from all directions
cablepilot
- Integrated cable guide: Prevents slipping, guides the cable when winding and ensures even distribution on the drum
- Practical carrying handle with dual function: For convenient transport or for hanging up the cable reel
- Flexible handling: Can be wound from both sides, plus plug garage for safe storage of the plug
Technical data
Technical data
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3100 W
- Usage: Trade/ construction sites
- Housing material: Plastic
- Area of use: Outdoor
- Number of earthed socket outlets: 3
- Number of CEE socket outlets:
- With CABLEPILOT: Yes
- With plug storage: Yes
- With Bretec: Yes
- Cable quality: Rubber-Neoprene
- Cable length: 50 m
- Cable designation: H07RN-F 3G1,5
- With residual current circuit breaker (RCCB): No
- Reel diameter: 320 mm
- With carrying handle: Yes
- Degree of protection (IP): IP44
- Nominal input voltage: 230 V
- Width of product (without packaging): 32 cm
- Weight of product (without packaging): 9,40 kg
- Height of product (without packaging): 41 cm
- Length of product (without packaging): 20 cm
Downloads
Downloads
All products are subject to technical changes
