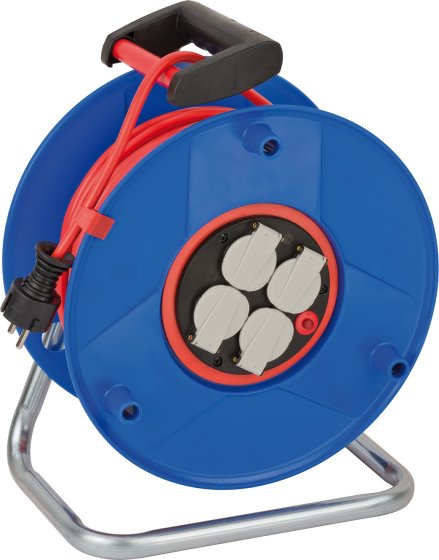

Garant ST 240 + Bretec cable reel 25m H05VV-F 3G1.5

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
Article number 1208858
EAN 4007123013036

Article number 1208858
EAN 4007123013036

Description

Description

  • The Bretec® rotary contact system enables the cable reel to be wound or unwound without twisting connected cables.
  • Reel body made of special plastic on galvanised carrying frame.
  • Ergonomic handle with axle for perfect cable guidance during winding and unwinding.
  • Earthing contact plug 230V/16A.
  • 4 protective contact sockets 230V/16A with hinged cover.
Bretec® rotary contact comfort
Bretec® rotary contact comfort

Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert. This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted.

Technical data

Technical data

  • Capacity in coiled state 230V: 1000 W
  • Capacity in uncoiled state 230V: 3300 W
  • Housing material: Plastic
  • Area of use: Indoor
  • Number of earthed socket outlets: 4
  • With CABLEPILOT: No
  • With plug storage: No
  • With Bretec: Yes
  • Cable quality: PVC
  • Cable length: 25 m
  • Cable designation: H05VV-F 3G1,5
  • With residual current circuit breaker (RCCB): No
  • Reel diameter: 240 mm
  • With carrying handle: Yes
  • Degree of protection (IP): IP20
  • Width of product (without packaging): 25 cm
  • Weight of product (without packaging): 4,17 kg
  • Height of product (without packaging): 33 cm
  • Length of product (without packaging): 19 cm
Downloads

Downloads

All products are subject to technical changes
