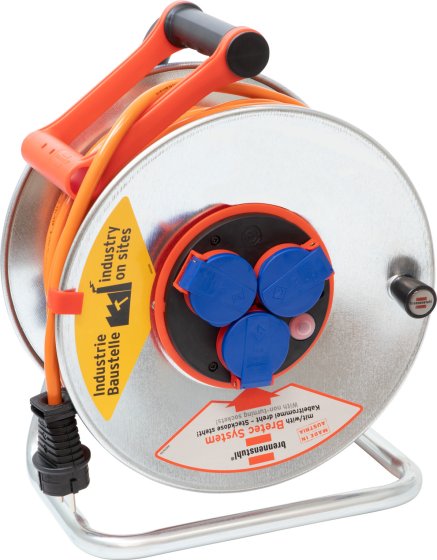

Garant SK 290 + Bretec IP44 commercial/building site cable reel 25m AT-N07V3V3-F 3G2.5

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
Article number 1309508122
EAN 4007123286904

Article number 1309508122
EAN 4007123286904

Description

Description

  • With Bretec® rotary contact comfort for rational working.
  • Extra sturdy tubular steel frame with new, exclusive stability.
  • Innovative "cablepilot" carrying handle for perfect cable management. Swivels to both sides for convenient carrying and hanging.
  • Drum body made of sheet steel, galvanised to protect against rust, on extra sturdy carrying frame.
  • Overheating protection, indicator light for overheating and overload.
  • Earthing contact plug 230V/16A.
  • 3 protective contact sockets 230V/16A with hinged cover.
Cablepilot
Cablepilot
  • Prevents the cable from slipping off the cable reel
  • Guides the cable onto the drum during rewinding
  • Ensures even distribution of the cable on the reel
  • Practical carrying handle that can also be used to hang up the cable reel
  • Can be rolled up from both sides
  • Plug garage for storing the plug
Bretec® rotary contact comfort
Bretec® rotary contact comfort

Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert. This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted.

Protected against foreign bodies and splash water
Protected against foreign bodies and splash water

Protection against contact with tools, wires or similar with ? >1.0 mm, protection against foreign bodies with ? > 1.0 mm. As well as protection against splash water from all directions

Technical data

Technical data

  • Capacity in coiled state 230V: 1000 W
  • Capacity in uncoiled state 230V: 3300 W
  • Usage: Trade/ construction sites
  • Housing material: Sheet steel
  • Area of use: Outdoor
  • Number of earthed socket outlets: 3
  • With CABLEPILOT: Yes
  • With plug storage: No
  • With Bretec: Yes
  • Cable quality: BREMAXX
  • Cable length: 25 m
  • Cable designation: AT-N07V3V3-F 3G2,5
  • With residual current circuit breaker (RCCB): No
  • Reel diameter: 290 mm
  • With carrying handle: Yes
  • Degree of protection (IP): IP44
  • Width of product (without packaging): 31,40 cm
  • Weight of product (without packaging): 7,18 kg
  • Height of product (without packaging): 37,10 cm
  • Length of product (without packaging): 19,30 cm
Downloads

Downloads

All products are subject to technical changes
