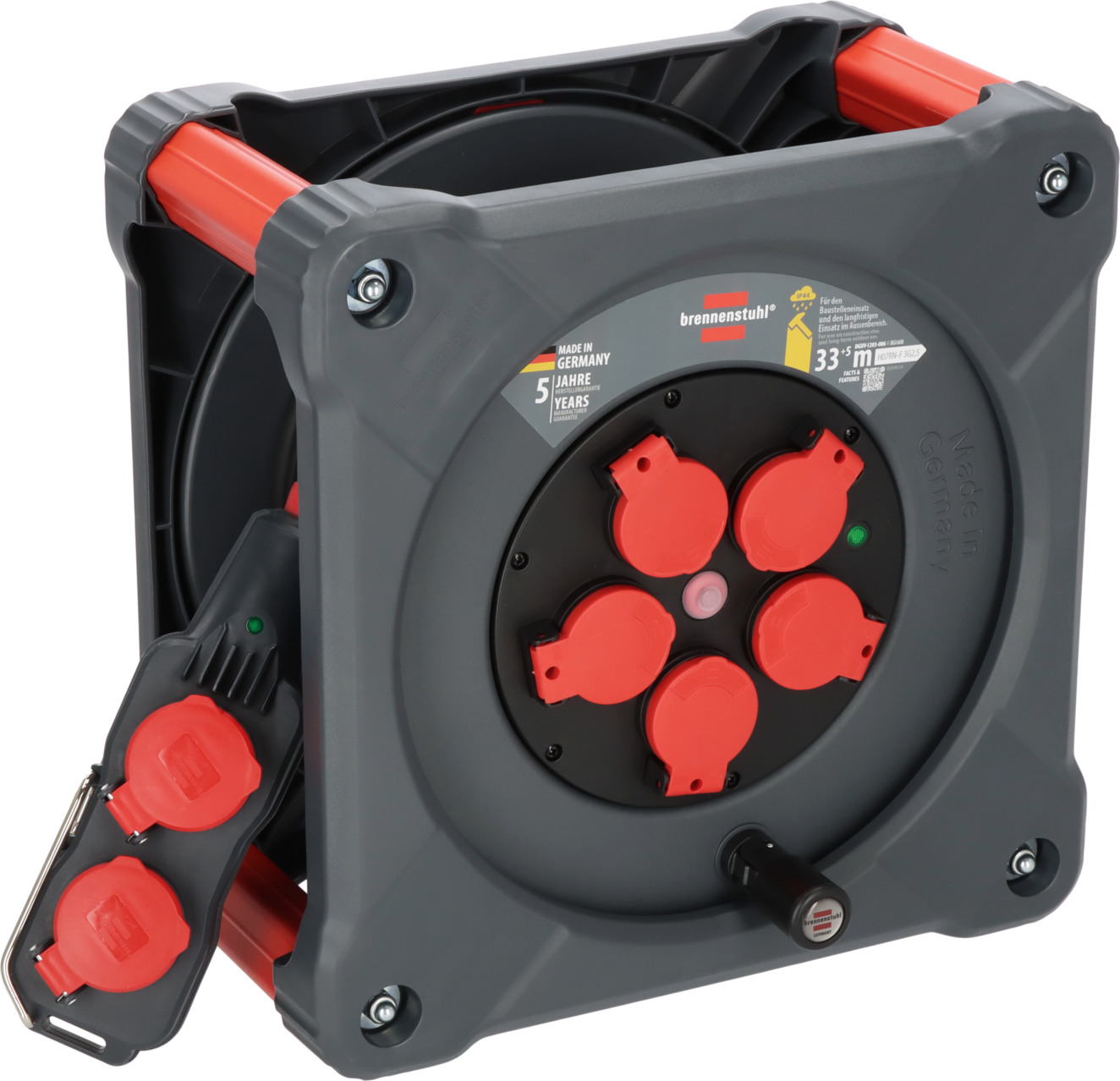

Professional cable reel KC 3200 5 with all-round roll-over protection and 4-way distributor (33+5m H07RN-F 3G2.5 cable, construction site use and permanent outdoor use, 5 protective contact sockets, Made in Germany)
Description

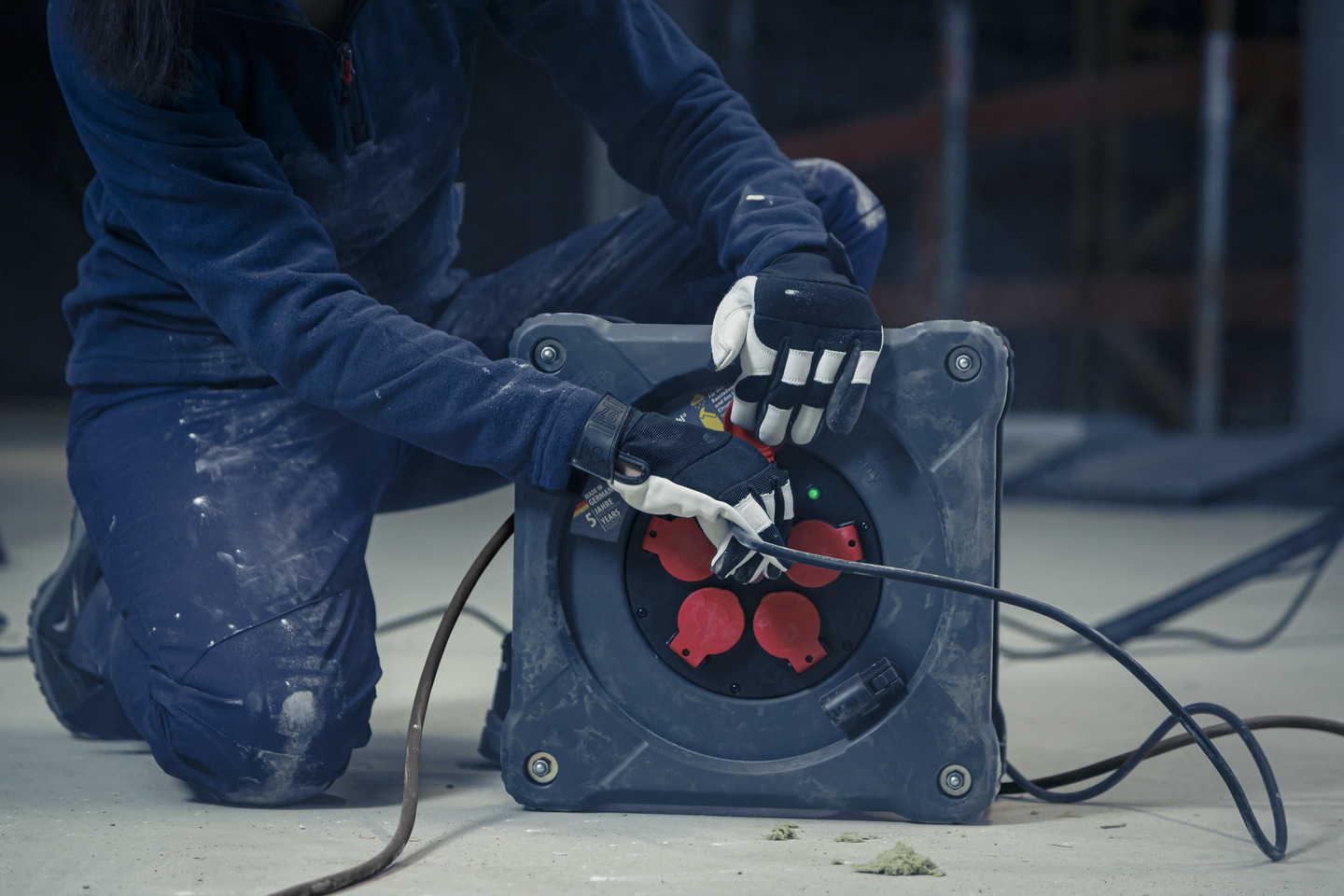

Thanks to its robust RN cable and IP44 protection rating, the Professional cable reel with 4-way distribution socket is perfect for permanent outdoor use, for example on construction sites. The extension cable reel with 5 protective contact sockets (splash-proof, with self-closing lids) and extra robust protective contact plug is extremely stable on all four sides thanks to all-round roll-over protection. Thanks to the mobile power block, it is also ideal for handy use on scaffolding or on roofs. The 4-way distributor has a visual readiness indicator, a folding metal suspension hook and a strap. The cable reel also impresses with the following features:
- Large, sturdy folding swivel handle for effortless winding and unwinding of the cable
- Robust carrying handles and plug garage on all four sides
- Reel body cold impact resistant down to -25 °C
- With drum brake
- RN cable is very robust, oil-resistant and particularly suitable for professional use
- RN cable is approved for harsh building conditions in accordance with VDE 0100 Part 704
- Overheating protection with indicator light for overheating and overloading
- With visual readiness indicator in the socket insert
- Protection class: IP44
- Cable length: 33+5 m
- Cable designation: H07RN-F 3G2.5
- Cable colour: black
- Category 2 equipment (K2 DGUV 203-005):Used for rough operation with high mechanical, physical and chemical influences
- Power when rolled up 230V: 1000W
- Power when unwound 230V: 3300W
The Professional KC cable reel is characterised by its all-round roll-over protection, which enables a stable position on all four sides and ensures optimum cable routing.
For the first time, the high-quality cable reels for professional use offer five instead of four earthed sockets - for even more flexibility and performance on the construction site, up to 5 devices can be plugged in together.
Technical data
- Cable designation: H07RN-F 3G2,5
- Cable length: 33 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- With ROL 'UP: No
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets:
- Number of earthed socket outlets: 5
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 29 cm
- Weight: 11,62 kg
- Width: 37 cm
- Additional cable length: 5 m
- Reel diameter: 320 mm
Scope of supply
Professional Construction site cable reel with Powerblock KC 3200 5
