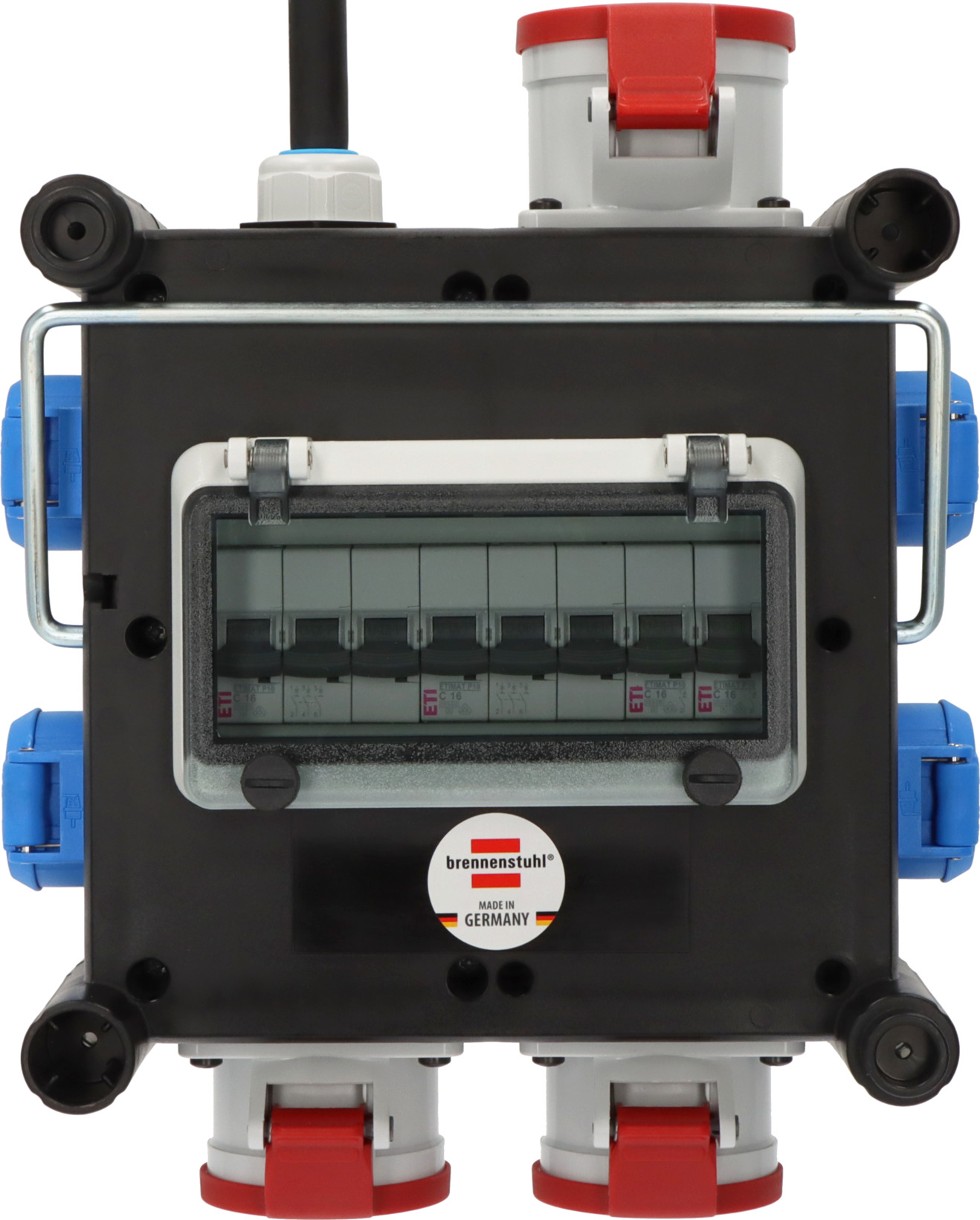

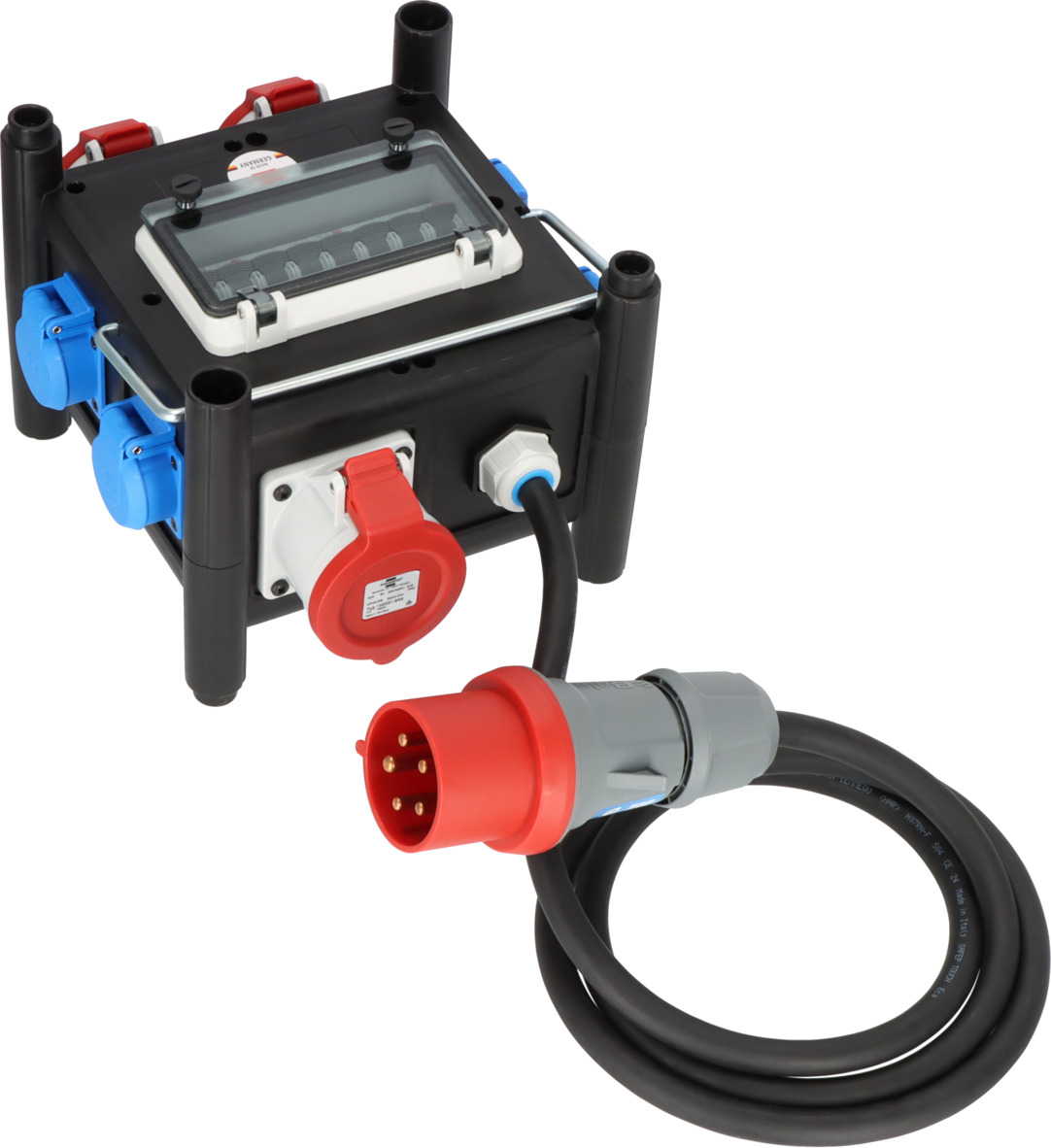

Compact Power Distributor BSV 3/32 2 IP44 2m H07RN-F 5G4.0 - 2xCEE16A, 1xCEE 32A, 4x230V
Description
Description
- Stackable, splash-proof housing made from a special rubber compound for continuous load.
- Extremely robust, impact resistant, ageing and weather resistant.
- Resistant to a variety of oils, greases, gasoline and acids, UV and ozone radiation.
- Housing resistant to temperatures from -30 °C to +80 °C.
- Quality sockets in accordance with VDE 0620-1.
- Certified circuit breakers for your safety.
- Sturdy metal carrying handle.
- Oil resistant rubber cable for permanent outside use.
- Earthed sockets 230 V in pairs with different phases.
Protected against foreign bodies and splash water
- Protection against splash water from all directions
Technical data
Technical data
- Cable designation: H07RN-F 5G4,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Max. electr. load capacity: 22000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Residual current circuit breaker (RCCB): Without
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 7
- Number of earthed socket outlets: 4
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Width of product (without packaging): 34 cm
- Weight of product (without packaging): 4,35 kg
- Height of product (without packaging): 23 cm
- Length of product (without packaging): 26,50 cm
Scope of supply
Scope of supply
Compact power distributor BSV 3/32 2 IP44
Downloads
Downloads
All products are subject to technical changes
